ASTM D4870 Determination of Total Sediment in Residual Fuels Oils

ASTM D4870 Determination of Total Sediment in Residual Fuels Oils
ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils ASTM D4870 Determination of Total Sediment in Residual Fuels Oils
Informations de base
Lieu d'origine: Chine
Nom de marque: Advanced Instruments
Certification: ASTM D4870; ISO 10307
Numéro de modèle: AIC-0701
Quantité de commande min: 1 ensemble
Prix: US$10000-15000/set
Détails d'emballage: caisse en contreplaqué
Délai de livraison: 15 jours
Conditions de paiement: T/T, LC, D/P
Capacité d'approvisionnement: 20 ensembles par mois
meilleur prix Contactez
Standard de test: ASTM D4870 Alimentation: 220 V CA ± 10 %, 50 Hz
Précision du contrôle de la température du bain vieillissant: ±0,5℃ Bain de vieillissement - plage de contrôle de température: Température ambiante ~120°C
Système de chauffage - puissance de chauffage: 600W Système de chauffage - forme de chauffage: Baignoire métallique, deux trous
Plage de contrôle de la température du filtre chaud: 10℃ Quantité de filtres chauds: 2 ensembles
Générateur de vapeur - pression de vapeur: 0-0.4MPA Pompe à vide - degré de vide: 200mbar
Vitesse de l'agitateur magnétique: (0~2400) tr/min, (0~99) fichier électronique réglable
Mettre en évidence:

ASTM D4870

,

Residue Fuel Oils Total Sediment Tester

,

Fuel Residue Sediment Analyzer

General Introduction

This ASTM D4870 Total Sediment in Residual Fuels Oils Tester is designed and manufactured in accordance with the requirements of two industry standards in the People's Republic of China: SH/T 0701 Residual Fuel Oil Total Sediment Determination Method (Hot Filtration Method) and SH/T 0702 Residual Fuel Oil Total Sediment Determination Method (Aging Method). Applicable to: 1. Determine the total sediment in residual fuel oil with a viscosity of less than 55mm ²/s at 100 ℃ and blended distillate fuel oil containing residual components according to SH/T 0701 standard requirements. 2. According to the requirements of SH/T 0702 standard, the stability of oil products during storage and transportation can be predicted by measuring the tendency of residual fuel oil to form precipitates.
This Total Sediment in Residual Fuels Oils Analyzer is an essential tool for testing and analyzing the total sediment of residual fuel oil in industries such as petrochemicals, transportation, national defense, as well as related universities, research institutes and other departments.
This Total Sediment in Residual Fuels Testing Instrument is also essentially equivalent to the technical requirements of ISO 10307-1 and ISO 10307-2 standards, as well as IP375 and IP390 standards.



Product Advantages

1.Compliant with the requirements of SH/T 0701 and SH/T 0702 standards, it is a dual-purpose machine with high cost-effectiveness.

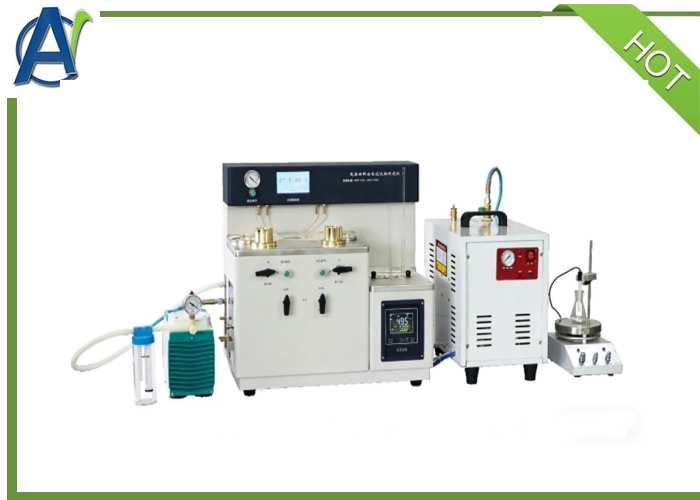

2.Composed of an instrument host, steam generator, vacuum pump, and constant temperature magnetic stirrer, it has a compact structure and is easy to use.

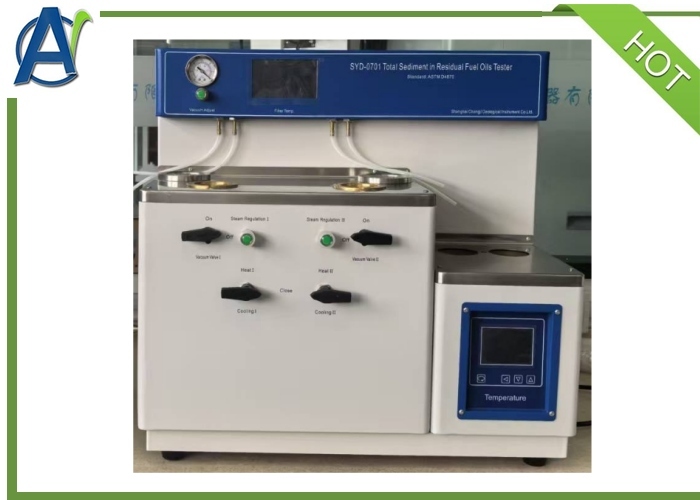

3.The host has two sets of heating and cooling systems, which can be switched according to the test requirements and controlled conveniently and quickly.

4.The main machine has built-in aluminum alloy aging bath, copper filter, double heating hole mode, and uniform heat conduction in the bath.

5.The host has two test holes, which can test two samples simultaneously.

6.Standard configuration includes fully automatic electric heating steam generator, oil-free vacuum pump, and constant temperature magnetic stirrer, with complete supporting facilities.

ASTM D4870 Determination of Total Sediment in Residual Fuels Oils 0


The Technical Specifications and Parameters



Power supply
AC (220 ±10%)V, 50 Hz
Aging bath
Temp. control range: room temp.~120℃
Temp. control accuracy:±0.5℃
Heating system
Heating power: 600W
Heating mode: metal bath, two holes
Hot filter
Temp. control range:10℃
Temp. control accuracy:1℃
Qty:2 sets
Using Condition
Environment temp. (5-40)℃,RH≤85%
Outer dimension 570mm×320mm×560mm
Net weight 15kg

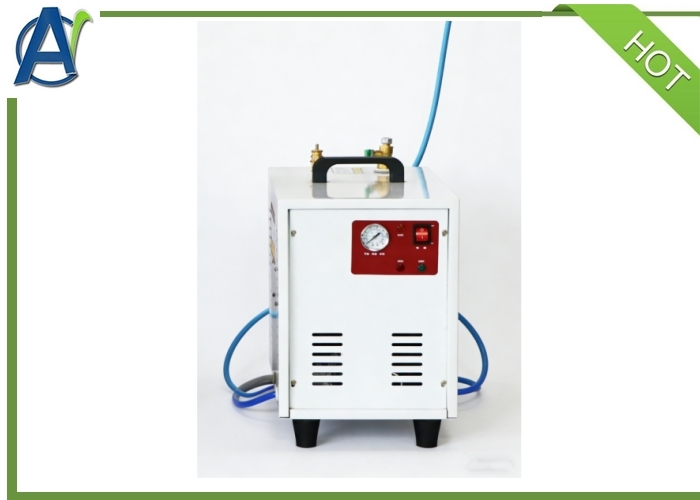

Steam generator Pressure:(0~0.4)MPa
Vacuum pump Vacuum degree: 200mbar

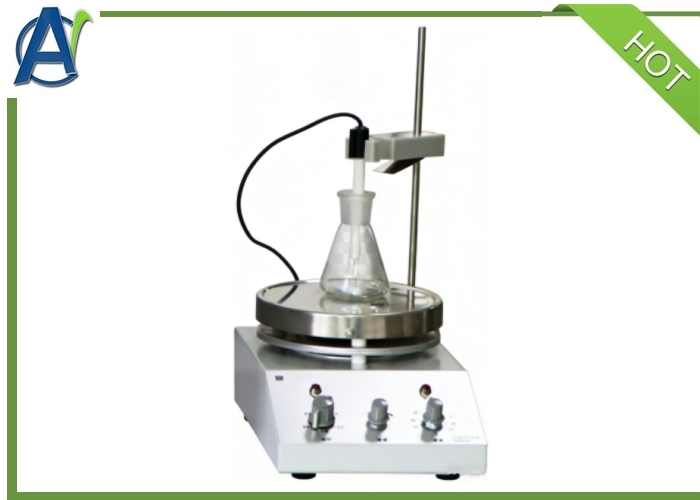

Magnetic stirrer (0~2400)r/min,
(0~99)Electronic adjustable



ASTM D4870 Determination of Total Sediment in Residual Fuels Oils 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
