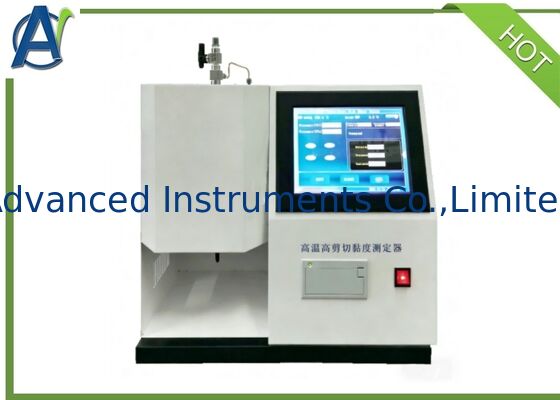

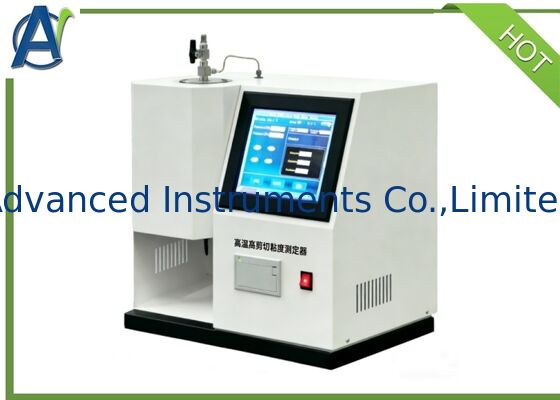

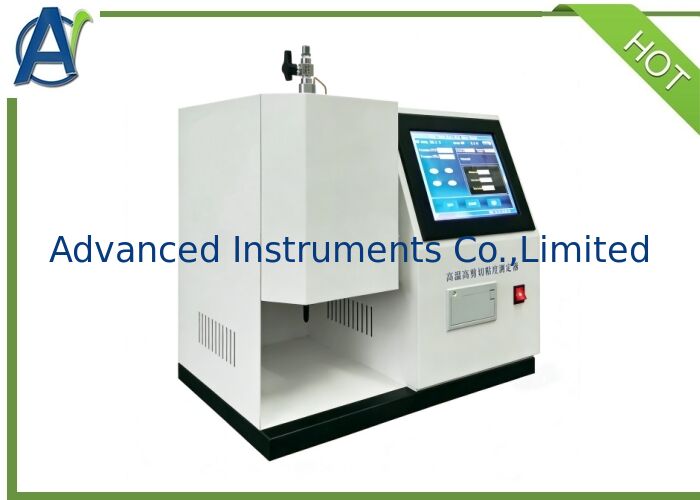

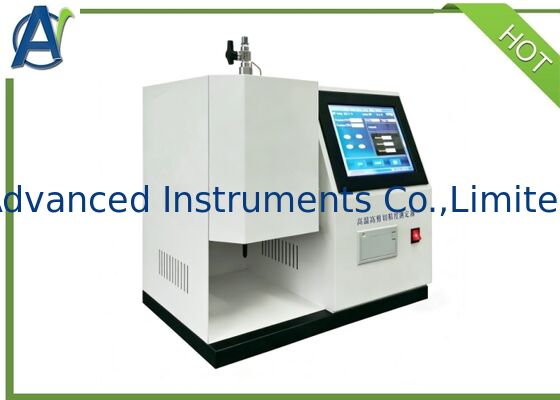

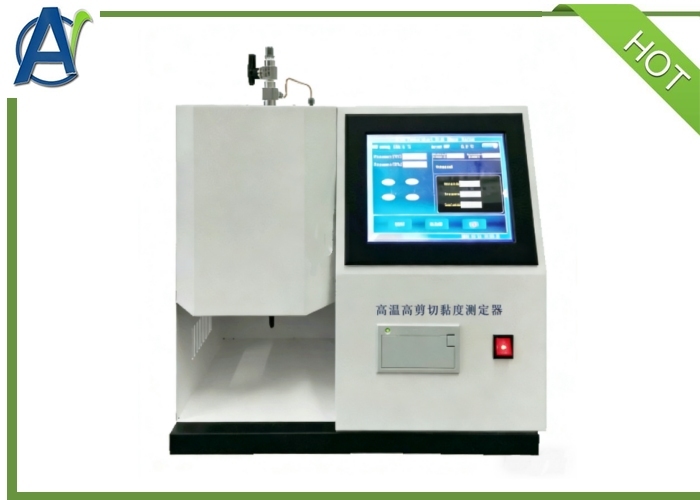

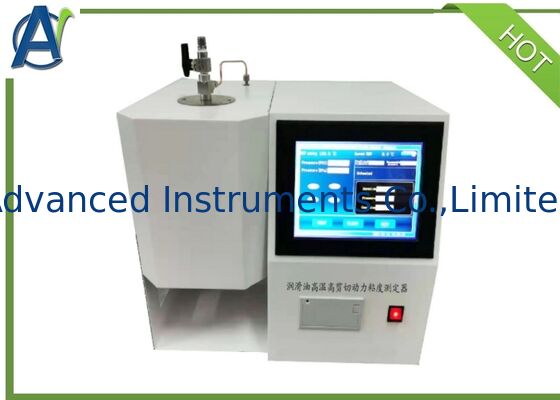

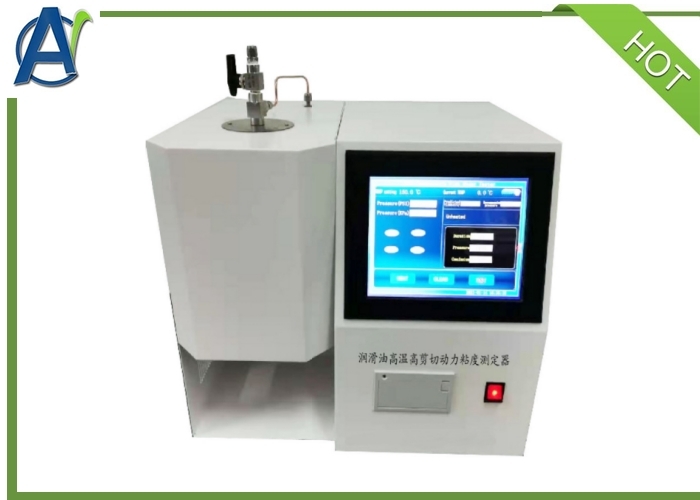

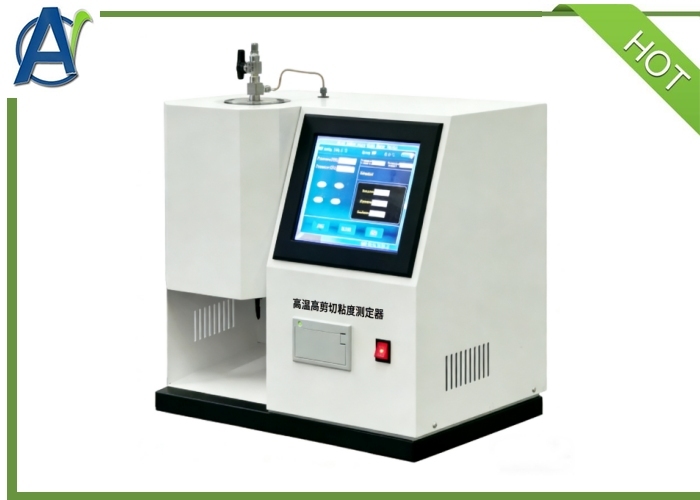

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS
ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS
Informations de base
Lieu d'origine: Chine
Nom de marque: Advanced Instruments
Certification: ASTM D5800
Numéro de modèle: AIC-0703A
Quantité de commande min: 1 ENSEMBLE
Prix: US$10000-15000/set
Détails d'emballage: caisse en contreplaqué
Délai de livraison: 20 jours
Conditions de paiement: T/T, LC, D/P
Capacité d'approvisionnement: 50 ensembles par mois
meilleur prix Contactez
Standard de test: Pour l'utilisation dans les machines de traitement de l'air Mode de contrôle de la température: Température constante du bain d'aluminium
Plage de contrôle de la température (expérimentale: 150 ± 0,1 ℃ Le nombre de pools de viscosité: 1 tube (2 tubes doivent être facultatifs)
diamètre intérieur du capillaire: 0,15 mm Longueur efficace du capillaire: 16 à 18 mm
Plage de pression atmosphérique: 0,5-3,5 MPa Méthode de chauffage: tige de chauffage électrique
alimentation: AC220V±10% 50Hz
Mettre en évidence:

ASTM D5481

,

HTHS Apparent Viscosity Tester

,

High-Temperature High-Shear viscometer

General Introduction



This Apparent Viscosity Testing Equipment at High-Temperature and High-Shear complies with standards ASTM D5481 and SH/T0703. Under test conditions of 150℃, the sample is forced through a capillary viscometer by nitrogen (or carbon dioxide) pressure. The apparent viscosity of the sample at a wall shear rate of 1.4×106s-1is determined from the sample's efflux time and pressure. By using calibration curves for each viscometer cell, the oil viscosity corresponding to the measured pressure can be established..



Product Advantages



1.Highly integrated design structure for easy operation and high automation; equipped with a 10-inch color LCD touch screen for user-friendly and intuitive operation.

2.Flexible sampling system with single-channel sampling as standard, and optional dual-channel sampling system to meet different experimental needs.

3.High-precision and high-resolution PLC controller and imported pressure transducer ensure data accuracy.

4.Metal heating device with temperature control range of 50-180°C and accuracy of ±0.1°C.

5.Original imported standard oil from U.S. KAYON ensures data accuracy.

6.Powerful intelligent functions and data management: automatically recommends pressure settings based on estimated viscosity to improve efficiency; automatically calculates results after testing, supports data storage and printing; and provides historical data query and management.

7.Sample cleaning device can autonomously filter solid impurities to ensure sample purity; automatically calculates calibration parameters and supports multi-point deviation correction to enhance experimental precision.

8.Advanced control parameters (such as temperature, pressure, flow rate, etc.) ensure stable and reliable experimental process.


ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS 0


The Technical Specifications and Parameters



Power supply

AC(220±10%)V, 50Hz
Heating Method

Electric heating rod
Temperature control range(Experimental)

150±0.1℃
Pressure Control Range

50kPa ~3500kPa
Sample Capacity

8ml
The number of viscosity pools

1unit(2 tubes need to be optional)
Capillary Viscometer inner diameter 0.15mm
Capillary effective length 16-18mm
Usage environment

Ambient temperature (10~40) °C,
relative humidity: ≤85%
Display

Touch screen display

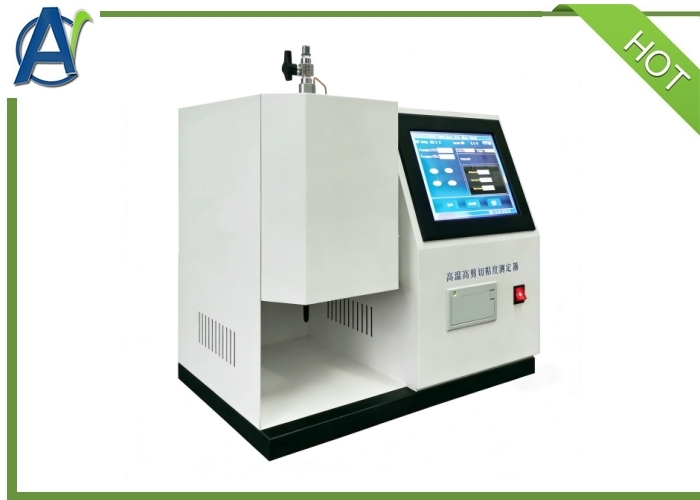

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS 1



FAQ

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
