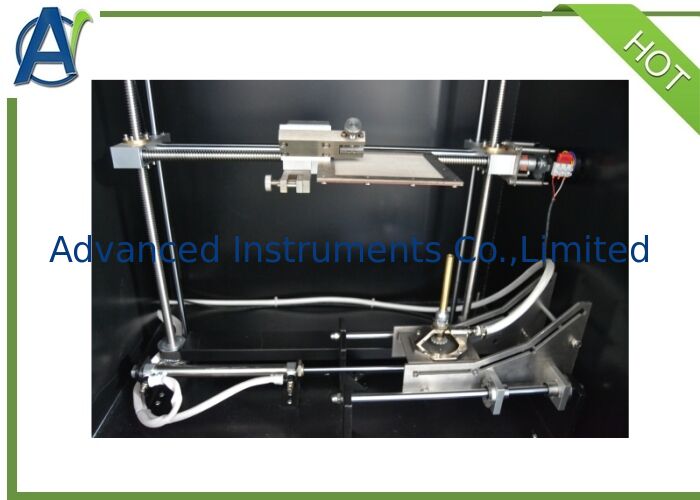

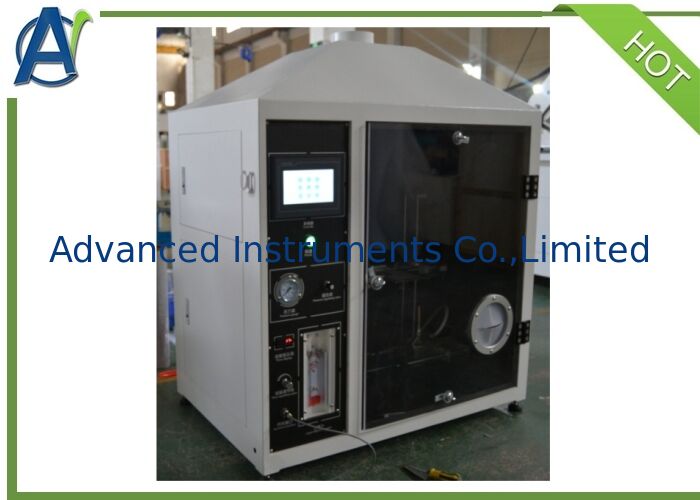

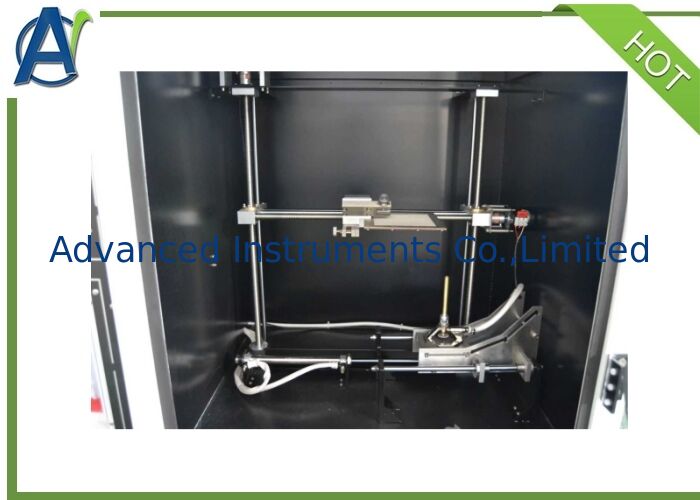

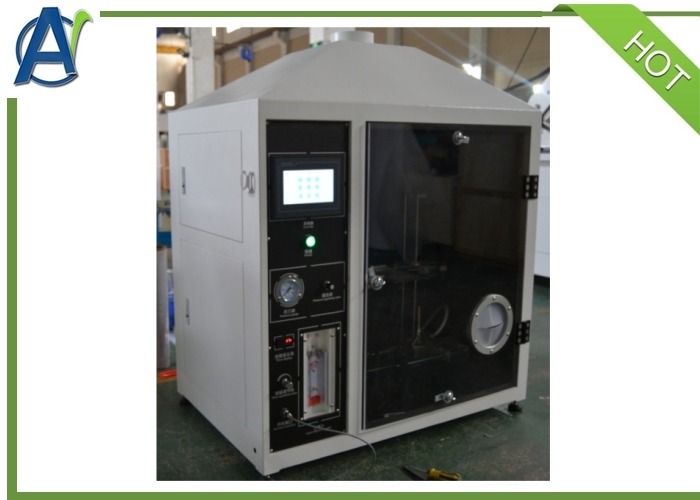

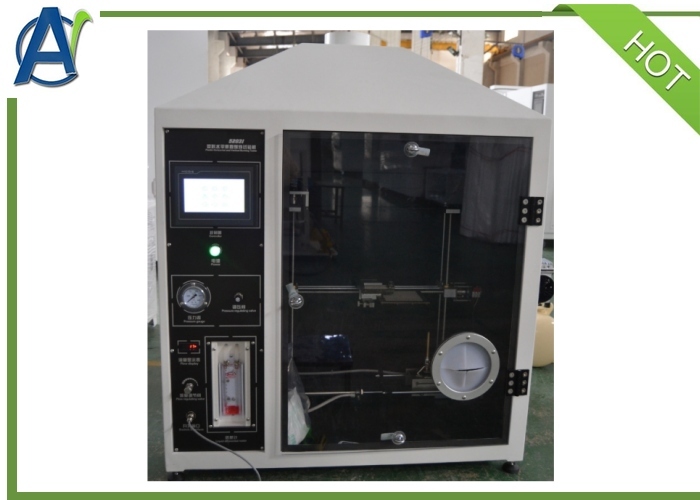

UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials

Horizontal and vertical burning tester is mainly used to determine the non-combustible properties of plastics or films under the direct combustion of the specified ignition source, to judge the refractory grade of refractory materials. UL 94 is one of the most important UL standards for fire safety test methods. He is particularly important for plastics used in the electrical industry, and the test method is based on UL's research on the flame retardant properties of plastics, which is not only applicable to the electrical industry, but also to many other fields, suitable for lighting equipment,low-voltage electrical appliances, household appliances, motors, tools, instruments and other equipment, as well as electrical and electronic products and their component parts such as electrical connections and other research, production and quality inspection departments, but also for insulation materials, Engineering plastics or other solid combustible materials industry.

1.2 Related standards

• UL 94
• IEC 60695-11-10:2013

1.Controller: 7" colour touch screen and PLC control

2.Burner positioning: Pneumatic

3.lgnition time:0 ~99.99s arbitrarily settable, the residual flame time andafterglow time are automatically recorded

4.Flame height: 18~22mm

5.Angle conversion: push-pull device 90°,20°.45°

6.Burner: lmported from USA HUMBOLDT applying with the requirements of ASTM D 5025-99

7.Flowmeter:0~500mL/min

8.Burner inner diameter: 9.5mm.

•Overall Demensions:1050mm(W)x750mm(D)x1400mm(H)

•Power Supply:AC220V 50/60HZ 1A

•Gas source: Methane,air(provided by the customer)
