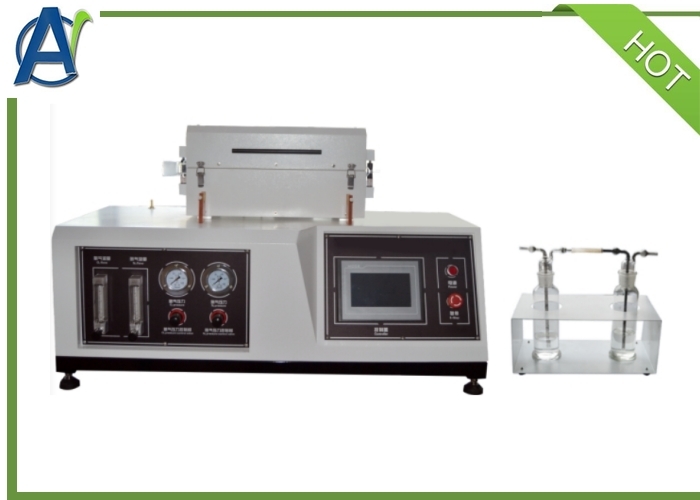

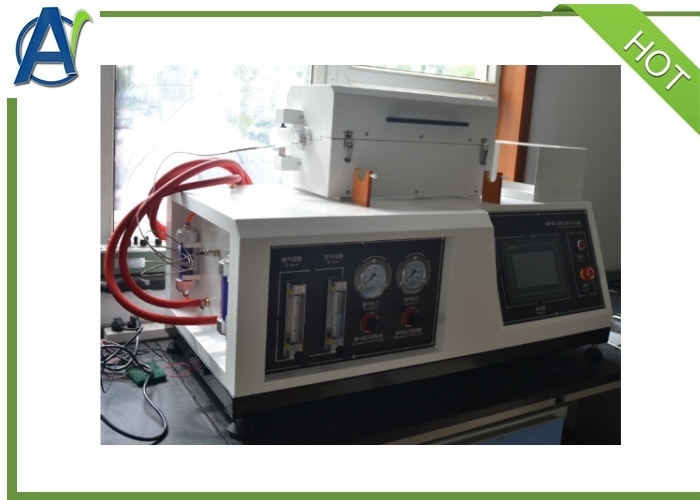

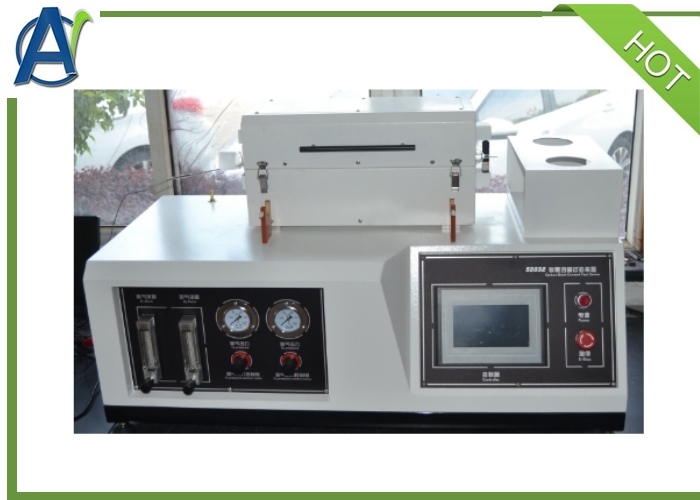

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
Informations de base
Lieu d'origine: Chine
Nom de marque: Advanced Instruments
Certification: IEC 60811-4-1:2004 ; ISO 6964
Numéro de modèle: AIC-52032
Quantité de commande min: 1SET
Prix: $5000~$10000
Détails d'emballage: Caisse en contreplaqué
Délai de livraison: 30 jours
Conditions de paiement: LC, T/T, D/P
Capacité d'approvisionnement: 20 ensembles/mois
meilleur prix Contactez
Service après-vente: Réponse en 12 heures 12 mois Garantie: 1 année complète
Forfait Transport: Caisse en contreplaqué norme d'essai: CEI 60811-4-1:2004 ; OIN 6964
gaz: azote (contenu d'oxygène <0.5%), l'oxygène application: Tests de câbles et de fils
Couleur: Gris Opération: Automatique
Taille du revêtement métallique: 300mmx600mmx1175mm Alimentation: AC220V,50/60Hz,16A
Brûleur de souffle: puissance nominale 1kw Appareil de gravure: allumage automatique haute tension
Source d&#39;air: Propane et air comprimé Mode de contrôle: Contrôle de l&#39;écran tactile
Volume de la chambre de combustion: ≥ 1 m³ Spécification: 600 mm × 450 mm × 750 mm
tube de quartz: diamètre intérieur 30 mm, longueur totale 450 mm ; Lavage des bouteilles: 500 ml, 2 pièces/ensemble
un bateau en feu: Type 77, 100 pièces/ensemble ;
Mettre en évidence:

IEC 60811-4-1:2004

,

ISO 6964

,

Carbon black Test Device

General Introduction
1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards
  • ISO 6964;
  • IEC 60811-4-1:2004
  • ASTM D1603

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 0

Technical parameters
  1. Quartz tube: inner diameter 30mm, total length 600mm;
  2. Heating furnace: room temperature~600℃, 500mm length;
  3. Temperature sensor: K type, room temperature~1300℃;
  4. Bottle washing: 500ml, 2 pcs/set;
  5. Burning boat: Type 77, 100 pcs/set;
  6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
  7. Flow meter: 0.3~3L/min.
Technical specifications
  1. Overall Dimensions: 600mm*450mm*770mm
  2. Power supply: AC 220V, 50/60Hz, 16A
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 1
FAQ
  1. What's the delivery time?
    About 30days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
