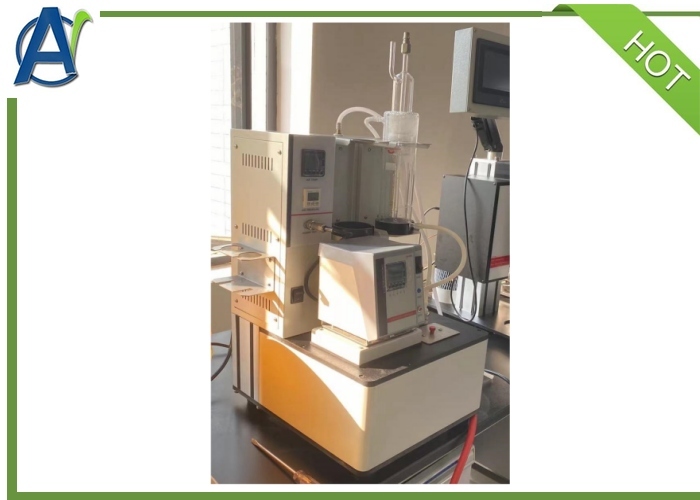

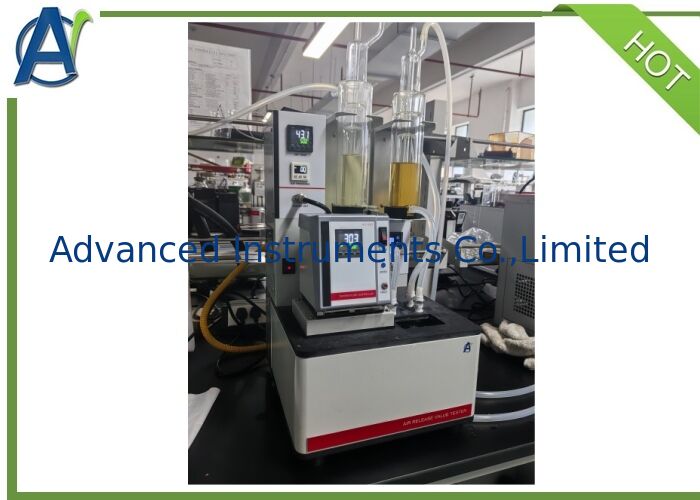

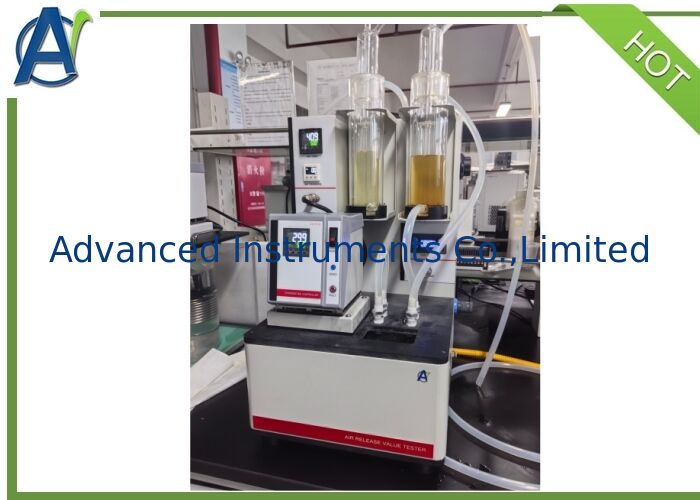

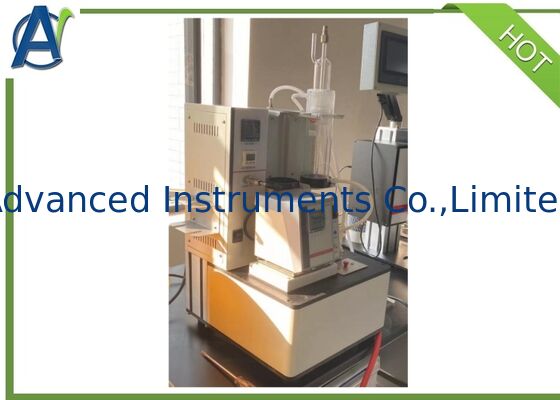

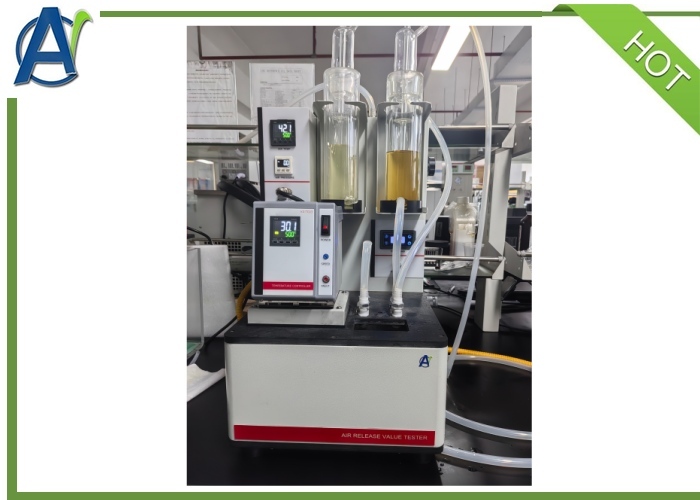

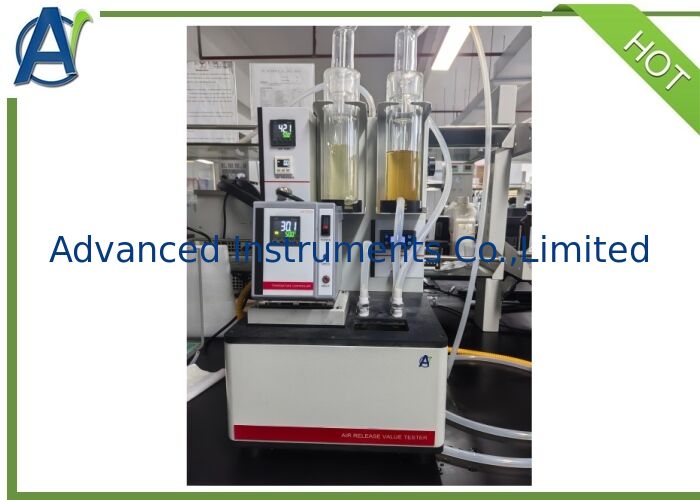

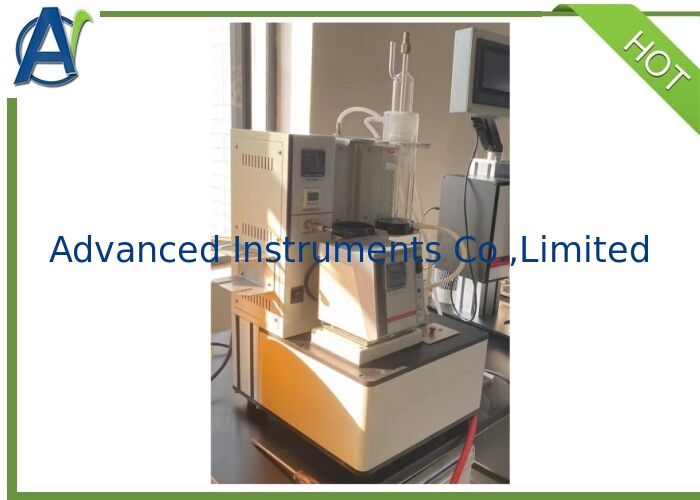

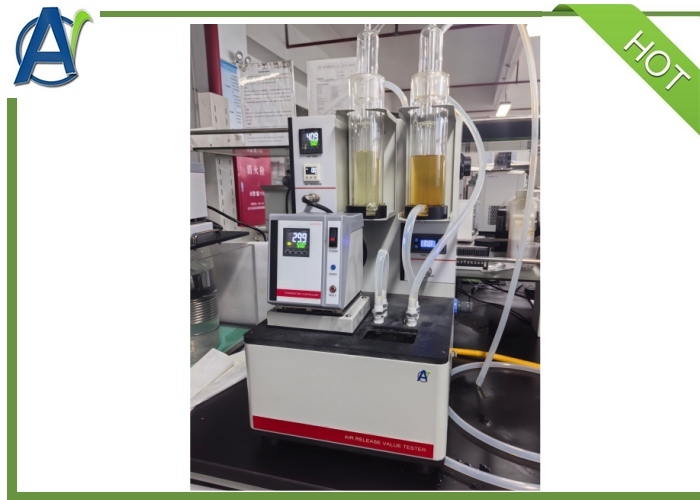

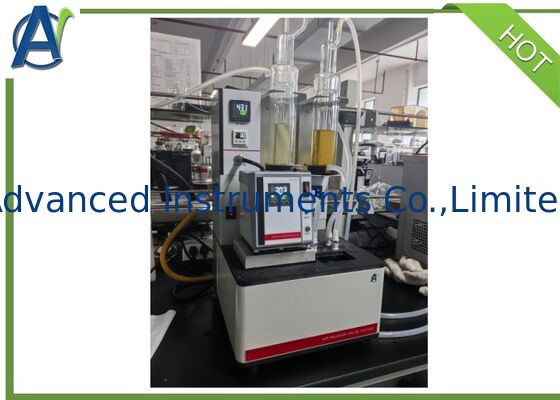

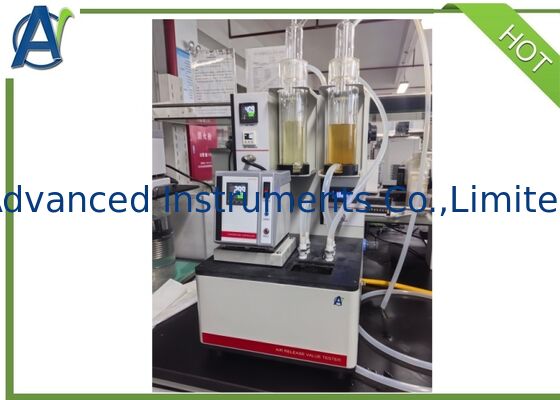

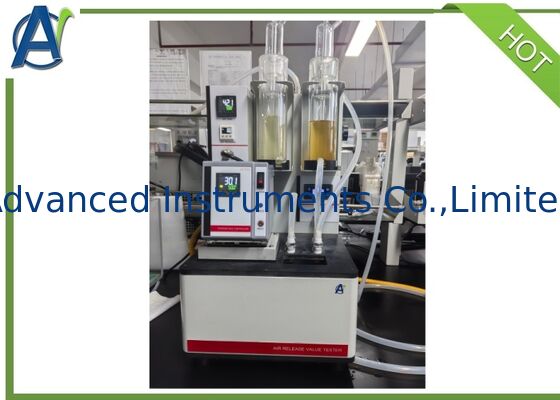

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

Informations de base

Lieu d'origine:	Chine
Nom de marque:	AI
Certification:	ISO9001
Numéro de modèle:	ARV-II

Quantité de commande min:	1 ensemble
Prix:	USD$3,000~5,000
Détails d'emballage:	caisse en contreplaqué
Délai de livraison:	30 jours
Conditions de paiement:	T/T, Western Union, L/C
Capacité d'approvisionnement:	20 ensembles par mois

meilleur prix Contactez

Garantie:	1 année complète	Application:	essais de graisse
Langue:	Anglais	Service OEM:	Disponible
Plage de contrôle de la température:	Ambiante ~ 80 ± 1 ℃	Fonction:	Tester la capacité des huiles à séparer l’air entraîné
Norme d'essai:	ASTM D3427,SH/T0308	Alimentation:	AC220±10% 50Hz±5%
Affichage de pression:	Numérique	Pression de travail:	19,6 kpa
Contrôle de pression:	Vanne de régulation de pression précise	Opération:	Manuel
Afficher:	dirigé	Portable:	Non portable
Taper:	Compteur de valeur de rejet d'air	Mode de synchronisation:	Minuterie numérique
Mode de chauffage:	Bar Électrique
Mettre en évidence:	ASTM D3427 lubricant air release tester , SH/T0308 automatic oil tester , lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.

Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.

2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC

3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.

4. Stainless steel constant water bath is corrosion resistant.

5. The Air Release Properties Tester uses LED display working pressure.

6. Each tap can be connected easily.

7. Timer can display time,manual timing is not needed.

8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.

9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.

III. Specifications:

1	Applicable standard	SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2	Power supply	AC220±10% 50Hz±5%
3	Heating mode	Electric bar
4	Temperature controlling range	ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5	Working pressure	19.6Kpa
6	Pressure controlling	Precise pressure regulating valve
7	Timing mode	Digital timer
8	Pressure display	Digital

FAQ

What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
